50mm Gi Steel Pipes Class 4 Class 3 Galvanized Electrical Gi Conduit Pipe

Ask Lasest Price
Brand Name :	wilda / OEM
Certification :	CE ISO
Price :	$500-$700
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	100,000 Tons per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

50mm Gi Steel Pipes Class 4 Class 3 Galvanized Electrical Gi Conduit Pipe

Specification 50mm Class 4 And Class 3 Galvanized Electrical Gi Conduit Pipe

Detailed Product Description
Standard: UL6 & ANSI C80.1
Certificates: UL Listed, certificate No.E308290 (177709-001)
Trade Size: From 1/2” to 6”

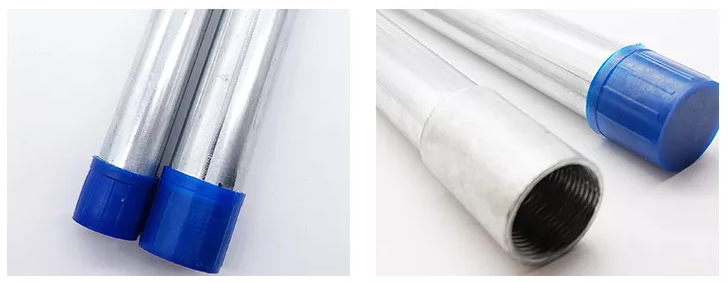

Both ends:Threaded both ends with one coupling and plastic cap
Length:3050mm or according to customer’s requirement
Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
Surface Finished: Hot dip galvanized(HDG).
Material: Carbon steel coil
Package:  The conduits cover with PVC paper then tied with steel straps
Delivery Time: 25 to 35 days after we receive your advance payment or copy of L/C
Payment Term: L/C at sight or T/T
 	 			Trade Size 			Nominal Wt. per 100Ft(30.5M) 			Nominal Outside Diameter 			Nominal Wall Thickness
 			U.S. 			Metric 			Lbs 			Kg 			In. 			mm 			In. 			mm
 			1/2 			16 			30 			13.5 			0.706 			17.93 			0.042 			1.07
 			3/4 			21 			46 			20.7 			0.922 			23.42 			0.049 			1.24
 			1 			27 			67 			30.6 			1.163 			29.54 			0.057 			1.45
 			1-1/4 			35 			101 			45.6 			1.510 			38.35 			0.065 			1.65
 			1-1/2 			41 			116 			52.8 			1.740 			44.20 			0.065 			1.65
 			2 			53 			148 			67.2 			2.197 			55.80 			0.065 			1.65
 			2-1/2 			63 			216 			97.9 			2.875 			73.03 			0.072 			1.83
 			3 			78 			265 			120.0 			3.500 			88.90 			0.072 			1.83
 			3-1/2 			91 			348 			158.0 			4.000 			101.60 			0.083 			2.11
 			4 			103 			392 			178.0 			4.500 			114.30 			0.083 			2.11

 	 			Product Name
 			Bs4568 class 4 gi cable pipe

 			Material
 			Steel of Bs4568 class 4 gi cable pipe

 			Color
 			nickel white of Bs4568 class 4 gi cable pipe

 			Standard
 			BS4568 of class 4 gi cable pipe

 			Grade
 			Class A,Class B of Bs4568 class 4 gi cable pipe

 			surface preparation
 			Pre-galv of Bs4568 class 4 gi cable pipe

 			Thickness
 			1.3mm---1.8mm of Bs4568 class 4 gi cable pipe

 			Used
 			building industry machinery, protecting cables and wires


Size: 1/2"- 4"
 Material: steel
 Standard:Accord to ANSI C80.3,UL797
 Electrical Metallic Tubing (EMT) is unthreaded, circular cross-section. It always used for protecting wires and cables.
  	 			Norminal Trade Size
 			Outside Diameter
 			Wall Thickness
 			Length

 			U.S.
 			Metric
 			inch
 			mm
 			inch
 			mm
 			mm
 			mm

 			1/2"
 			16
 			0.706
 			17.93
 			0.042
 			1.07
 			3000
 			3050

 			3/4"
 			21
 			0.922
 			23.42
 			0.049
 			1.25
 			3000
 			3050

 			1"
 			27
 			1.163
 			29.54
 			0.057
 			1.45
 			3000
 			3050

 			1-1/4"
 			35
 			1.51
 			38.35
 			0.065
 			1.65
 			3000
 			3050

 			1-1/2"
 			41
 			1.74
 			44.2
 			0.065
 			1.65
 			3000
 			3050

 			2"
 			53
 			2.197
 			55.8
 			0.065
 			1.65
 			3000
 			3050

 			2-1/2"
 			63
 			2.875
 			73.03
 			0.072
 			1.83
 			3000
 			3050

 			3"
 			78
 			3.5
 			88.9
 			0.072
 			1.83
 			3000
 			3050

 			3-1/2"
 			91
 			4
 			101.6
 			0.083
 			2.11
 			3000
 			3050

 			4"
 			103
 			4.5
 			114.3
 			0.083
 			2.11
 			3000
 			3050




Products Description

Technological Process

Why Choose Us?

Packaging& Delivery





These pipes are widely used for conveying raw water & distribution of treated water in majority of rural water supply schemes, where the requirement of water is less. Mostly medium quality GI pipes are used.
