DIN 2391 E235 E355 Galvanized Steel Tube For Automobile Cold
Drawing Steel Tubing
In order to make best quotation, Please kindly indicate length,
width, thickness and the standard,material you required.
item | E235 E355 Seamless Weld Cold Drawn Galvanized Carbon Precision
Steel Pipe Tube |
Alloy Or Not | Is Alloy |
Section Shape | Round |
Special Pipe | Thick Wall Pipe |
Standard | BS1387, En10255, API 5L, ASTM A53, JIS G3444 |
Grade | BS1387 DIN 2448 ASTM A35 A36 SA106,etc |
Surface Treatment | Galvanized |
Tolerance | ±1% |
Oiled or Non-oiled | Non-oiled |
Invoicing | by actual weight |
Delivery Time | Within 7 Days |
Length | 1-12m |
Diameter | 20-600mm |
Wall Thickness | 0.8-20mm |
Inspection | The Third Party Inspect |
Payment Terms | 30%TT Advance + 70% Balance |
Usage | Fluid Pipe, Gas Pipe, OIL PIPE, Structure Pipe,etc |
Package | Seaworthy Standard Package |
PRICE TERM | CIF CFR FOB EX-WORK |
Description:
Dimensions of the galvanized tubes for hydraulic and pneumatic
lines:
Outside diameter ranges from 6 to 350 mm and the wall thickness
ranges from 0.8 to 30 mm. Precision steel tubes are delivered
according to EN 10305-4, DIN 2391-1, STN 42 6711 and 42 6712, ČSN
42 6711 and 42 6712.
Synopsis of Process Routing:
DIN highly accurate cold drawn bright seamless steel tube is used
as the tube to be galvanized, the outer wall is electroplated, caps
are covered at two ends of tube to prevent from the dust.
Main Features:
Different color of zinc such as white, yellow, army-green, black is
evenly distributed in the surface of the tube, good brightness and
antirust and antisepsis could improve after zinc coated.
Length of the galvanized tubes:
in diameter <= 16 mm >=6000 + 100 mm
in diameter >= 16 mm <=24000 + 50 mm
Tolerances of the zinc coated tubes:
-tolerances of the outside diameter:
| diameter between 4 - 30 mm | ±0,08 mm |
| diameter between 35 - 38 mm | ±0,15 mm |
| diameter above 42 mm | ±0,20 mm |
-tolerances of the inside diameter are according to EN 10305-4
-tolerance of the wall thickness ± 10%
The Main Steel grades for the zinc coated tubes:
St 30 Si / St 30 Al / St 35 / St37.4 / St45 / St 52 / St52.4 /
E235, E255,E355
| DIN 2391 / EN 10305-1/ EN 10305-4 |
| Precision seamless tube and pipe with European&Germany standard |
| Application: | for Atuo;for machinery use; Oil cylinder tube; Motorcycle shock
reducer steel tubes; Auto shock reducer inner cylinder. |
| Size(mm): | O.D.:6mm-350mm ; W.T.:1-30mm; L:max 24000 |
Grade and Chemical Composition(%):
| Grade | Chemical Composition(%): |
| C max | Si max | Mn | P max | S max |
| St 52 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| St 45 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| St 35 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| St 30 Si | 0.10 | 0.30 | <=0.55 | 0.025 | 0.025 |
| St 30 Al | 0.10 | 0.05 | <=0.55 | 0.025 | 0.025 |
Condition on delivery:
| Steel Grade | BK | BKW | GBK | NBK |
| Code No. | Tensile Strength N/mm2 min | Elongation at rupture N/mm2 min | Tensile Strength N/mm2 min | Elongation at rupture N/mm2 min | Tensile Strength N/mm2 min | Elongation at rupture N/mm2 min | Tensile Strength N/mm2 min | Elongation at rupture N/mm2 min |
| St 52 | 590 | 4 | 540 | 7 | 490 | 22 | 490-630 | 22 |
| St 45 | 540 | 5 | 470 | 8 | 390 | 21 | 440-570 | 21 |
| St 35 | 440 | 6 | 370 | 10 | 315 | 25 | 340-470 | 25 |
| St30 Si | 400 | 8 | 330 | 12 | 280 | 30 | 290-420 | 30 |
| St30 Al | 400 | 8 | 330 | 12 | 280 | 30 | 290-420 | 30 |
Final supply conditions:
| Designation | Symbol | Description |
| Cold finished (hard) | BK | Tubes do not undergo heat treatment following the final cold
forming and, thus, have a rather high resistance to deformation. |
| Cold finished (soft) | BKW | The final heat treatment is followed by cold drawing involving
limited deformation. Appropriate further processing allows a certain degree of cold
forming (e.g. bending, expanding). |
| Cold finished and stress-relieved | BKS | Heat treatment is applied following the last cold forming process.
Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming
and machining to a certain degree. |
| Annealed | GBK | The last cold forming process is followed by annealing in a
controlled atmosphere. |
| Normalized | NBK | The last cold forming process is followed by annealing above the
upper transformation point in a controlled atmosphere. |
Galvanized tube category and related standard:
| Galvanized tube category and related standard |
| Galvanized tube category | Related Standard | Zinc coating thickness | Salt spray test |
| Gr3+ Galvanized tube with blue and white zinc | ASTM B633-07
(Type III,SC 1/2/3/4) | 5-25um | 24--72 hours without white rust;48--168 hours without red rust |
| Gr3+ Galvanized tube with color zinc | ASTM B633-07
(Type II,SC 1/2/3/4) | 5-25um | 48--96 hours without white rust;48--240 hours without red rust |
| Gr6+ Galvanized tube with color zinc | ASTM B633-98
(Type II,SC 1/2/3/4) | 5-25um | 24--96 hours without white rust;48--124 hours without red rust |
Applications:
Zinc coated precision steel tubes (galvanized tubes) are destined
for hydraulic and pneumatic pressure distribution (so called HPL
tubes),
production of automobile components, utility vehicles as well as
for production of machine products such as fittings and joints.
Cold drawn precision tubes are used as the semi-finished product
and they are made from rolled seamless tubes.
Precision tubes HPL types are made from carbon and alloyed steel.
Application areas:
Automotive, military, railway industry, with high requirement of
the tubes brightness, cleanness, antirust, and antisepsis.

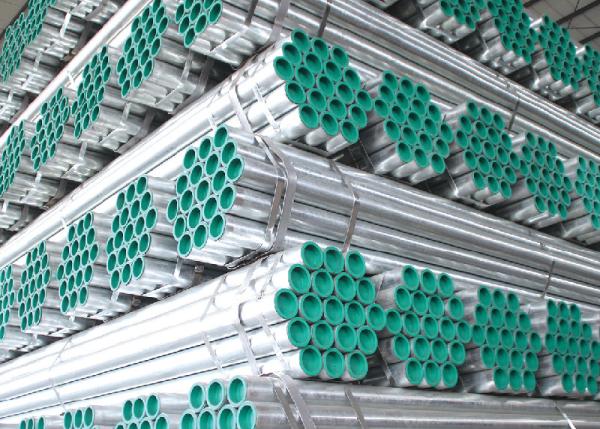

Product Photo

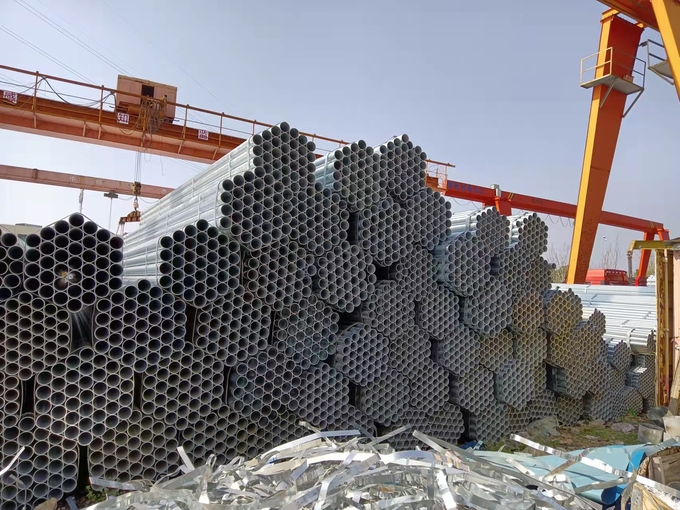

Factroy Pictures
